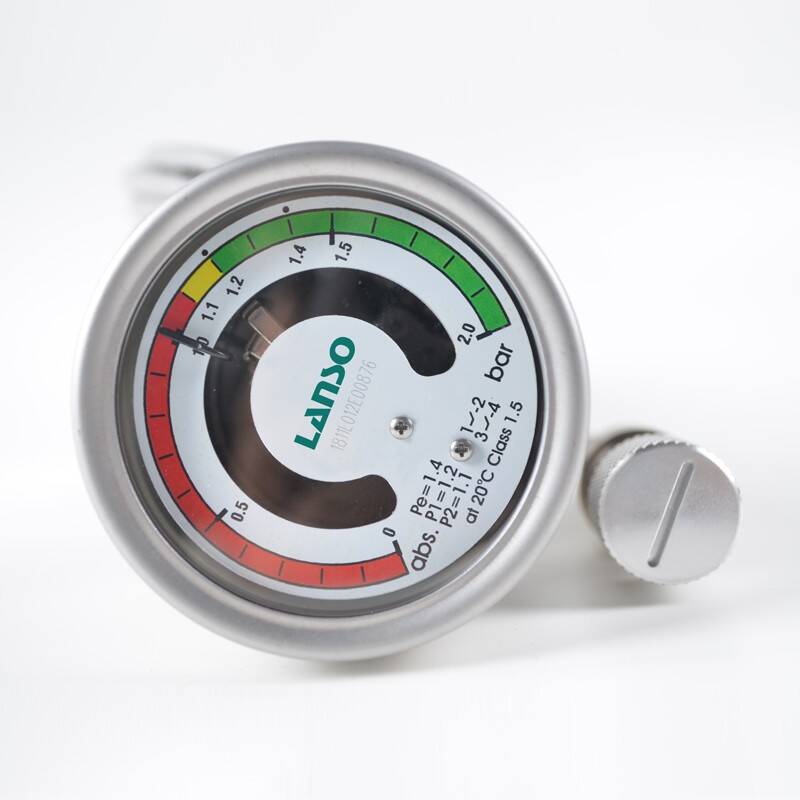

ZMJ60V Series Density Monitors

These instruments are used to monitor the density of SF6 gas in sealed tanks, and can be widely used in medium voltage switchgear, RMU. It's suitable for outdoor harsh external conditions. It can provide multiple solutions to support new substations and the intelligent transformation of existing substations. The electrical maintenance personnel can make SF6 gas density monitor calibration or gas filling without disassembling SF6 density monitor.
ZMJ60V Series Density Monitors
  • ZMJ60V Series Density Monitors
Share It :

Application of ZMJ60V Series Density Monitors


  • Sf6 gas Insulated RMU

  • Sf6 gas Insulated Switchgear


Features of ZMJ60V Series Density Monitors


  • Minimization of volume, custom interface, convenient and reliable installation.

  • Pressure interface customised to customer requirements.

  • A plurality of switching contacts according to the needs of the user can be provided.

  • SF6 gas density monitor can be calibrated or replaced without disassembling an SF6 density monitor.

  • If the screws are not disassembled, a person can operate independently, which saves effort and time.

  • On-site staff can be able to measure micro-water and supplement air to a switch

  • Avoid surface sealing and joint damage caused by disassembly


Technical Data of ZMJ60V Series Density Monitors


Case diameter:Φ64mm
Case material:Stainless steel
Scale range:0 to 2bar (abs.) or -1 to 6bar
Accuracy:Class 1.5 at20°C; class 2.5 at-40°C to 60°C (gas phase)
Ambient conditions:-40°C to 60°C, relative humidity ≤ 95%RH
Degree of protection:IP65
Leakage rate:< 1 × 10-9 Pa·m3/s (helium leak check)
Contact type:Magnetic snap-action switch (Maximally three groups, normally open or normally closed, customized by 3 groups according to users' needs)
Pressure connection:M20×1.5 (customizable)
Maintenance connection:M16×1.5 (customizable and additional adapter needed to the calibrator or gas tank)
Installation method:radial or axial
Insulation properties:
Insulation resistance:>100 MW (500 V DC)
Withstand voltage:2kV, 50/60 Hz 1 min
Contact electrical parameters:Power: 30VA
Maximum operating voltage:380V
Maximum current:1A
Weight:0.3kg
Pressure-sensitive component:imported Bourdon tubes


Options of ZMJ60V Series Density Monitors


  • Different measuring ranges

  • Wide temperature range -60°C to +60°C

  • Can detect SF6, Air, N2, SF6+N2 and other gases

  • Remote transmission function
