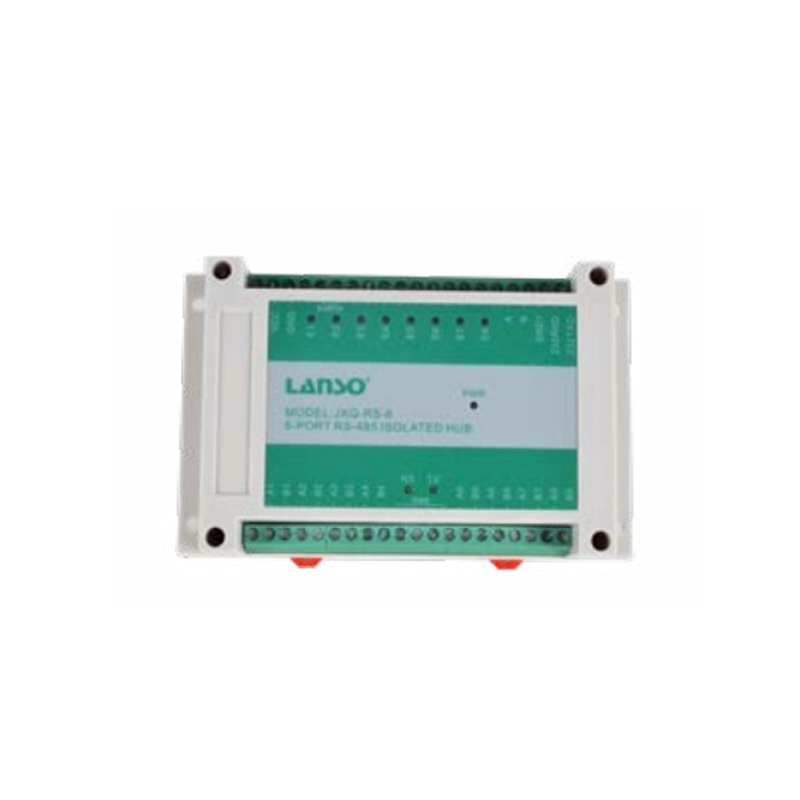

JXQ Series RS485 Hub
JXQ series RS485 hub is a RS-485 bus splitter designed to address the requirements of large RS-485 systems in complex electromagnetic environments. The product supports transmission rates up to 115.2Kbps. To ensure safe and reliable data communication, the RS-485 interface uses optical isolation technology to prevent lightning surges from introducing into the converter and equipment. The built-in optical isolator and 1500W surge protection circuit provide 2500V isolation voltage and effectively prevent lightning, ESD, and grounding interference. The power supply uses an external switching power supply for reliable operation.
In the RS-485 mode of operation, the discrimination circuit automatically senses the direction of data flow and switches the enable control circuit automatically, solving the delay problem of RS-485 transceiver conversion easily. It is widely used in power collection systems and is a high-performance and cost-effective data interface conversion product.
JXQ serie
Application
Features
The interface adopts optical isolation technology to prevent lightning surges from introducing into the converter and equipment.
It automatically detects and controls the RS485 data stream, and can automatically generate the RS485 transceiver switching enable signal based on the transmitted data.
Each port has short circuit and open circuit protection, and any interface failure will not affect the normal operation of other interfaces.
The number of RS485 interfaces is optional for 4 or 8 ports.
Technical parameter
Interface characteristics: The interface is compatible with EIA/TIA's RS-232C and RS-485 standards.
Operating voltage: DC 12-48V with a current of 350mA.
Transmission medium: twisted pair or shielded wire.
Operating mode: asynchronous half-duplex.
Signal display: Eleven signal indicators including power (PWR), transmit (TX), receive (RX), and fault (E1-E8) indicators.
Interface protection: Using optical isolation.
Transmission rate: 300bps-115.2kbps.
Size: 145mmx90mmx40mm.
Operating environment: Temperature: -40℃~+85℃, relative humidity: 5%~95%.
Installation method: Rail installation.
Options:
Model | Instruction | Installation | Operate power |
JXQ-RS-08 | Eight RS485 ports | Rail installation | 12~48VDC |
JXQ-RS-04 | Four RS485 ports | Rail installation | 12~48VDC |
