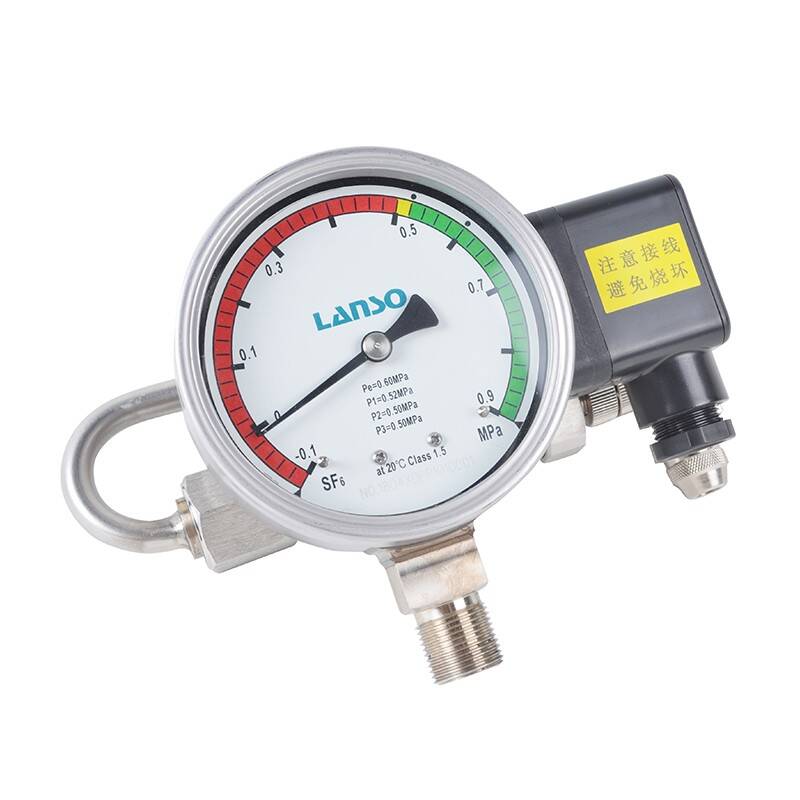

ZMJ100XD Density Monitor

ZMJ100XD Density Monitors are used to monitor SF6 gas density in sealed tanks. They are applied to indicate the gas density and to provide signal outputs when the density reaches the set values. They are designed to monitor High Voltage systems. They can provide multiple solutions to support new substations and the renovation and upgrading of existing substations

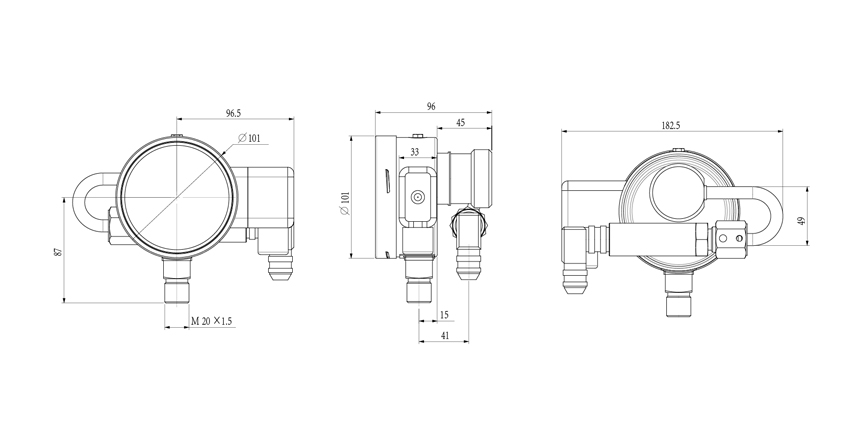

ZMJ100XD Series Density Monitors
  • ZMJ100XD Series Density Monitors
  • ZMJ100XD Series Density Monitors
  • ZMJ100XD Series Density Monitors
Share It :

Application of ZMJ100XD Series Density Monitors


  • SF6 Gas Insulated Switchgear (GIS)

  • SF6 Insulated Circuit Breakers

  • SF6 Insulated Pole-Mounted Switch

  • SF6 Insulated Transformers

  • SF6 Insulated Current Transformers or Voltage Transformers

  • SF6 Insulated Busbar Systems


Features of ZMJ100XD Series Density Monitors


  • Higher accuracy from reference chamber temperature compensation technology

  • Class 1.0 display accuracy for full scale range

  • Suitable for indoor or outdoor installation

  • More accurate gauge indication values and contact switching values throughout the temperature range

  • Micro-switch that can switch freely between normally open and normally closed points

  • Up to 4 sets of switch contacts, multiple options such as double alarms and double locks can be realized, making monitoring more secure and reliable

  • High shock resistance. No need to fill oil, no oil leakage hazard

  • Normally closed contacts will not falsely alarm due to vibration


Technical Data of ZMJ100XD Series Density Monitors



Scale range:

-0.10.9MPa (customizable)
Accuracy of set point:

±1.0%FS(+20±1℃)

±1.6%FS(-30℃~+60℃)(gas phase)

Indication accuracy:

Rated pressure±1.0%FS+20±1℃)

±1.8%FS-20℃~+60℃)(gas phase
±2.3%FS-30℃~-20℃)(gas phase

Degree of protection:

 IP65

Ambient conditions:

-20°C~+60°C, relative humidity ≤95%RH

Leakage rate:

≤1×10-9 Pa·m3/s (Helium leakage inspection)

Pressure connection:

 M20×1.5, (customizable)
Installation method:Radial or Axial

Electrical connection:

Pluggable seven-pin connector

Insulation properties:

 Insulation resistance: >100 MW (DC 500V)
Withstand voltage: 2kV, 50/60 Hz,1min

Contact type:

Micro Switch

Impact rating:

50g

Contact ratings:

10(1.5)A,250V AC
0.1 (0.05)A,250V DC

Window:

Laminated safety glass

Weight:

≈1.0kg

Pressure sensitive components:

Bellow and Bourdon Tube



Options of ZMJ100XD Series Density Monitors


  • Different measuring ranges

  • Wide temperature range:Optional-40°C ~+70°C

  • Measuring medium:SF6、Air、N2、SF6+N2 and other gases
