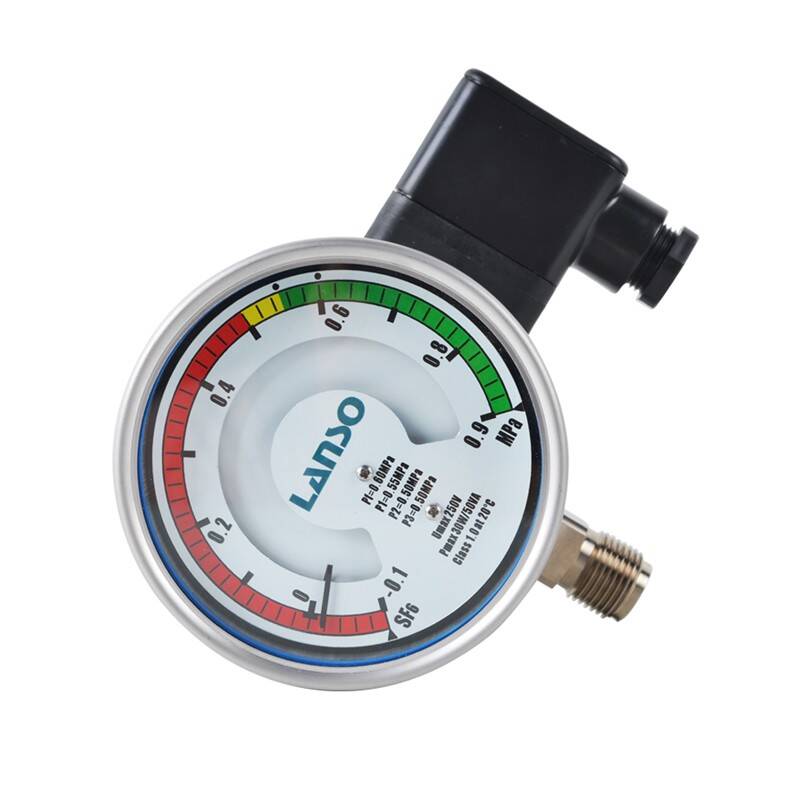

ZMJ100PF Series Density Monitors

With a special dial structure, when used outdoors, it can isolate the influence of sunlight on temperature compensation, improve the accuracy of the display, and avoid misoperation of the contacts.
ZMJ100PF Series Density Monitors
  • ZMJ100PF Series Density Monitors
Share It :

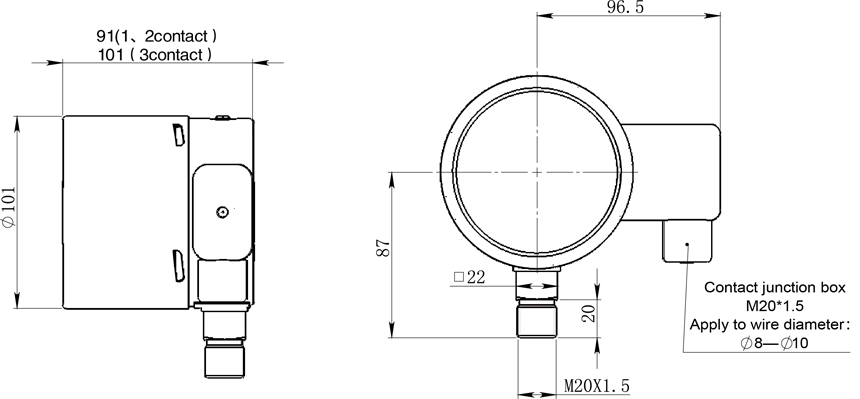

Drawing of ZMJ100PF Series Density Monitors


ZMJ100PF Series Density Monitors


Application of ZMJ100PF Series Density Monitors


  • SF6 Gas Insulated Switchgear (GIS)

  • SF6 Insulated Circuit Breaks

  • SF6 Insulated Pole-Mounted Switch

  • SF6 Insulation Transformer

  • SF6 Insulation Mutual Inductor

  • SF6 Insulated Busbar Systems


Features of ZMJ100PF Series Density Monitors


  • Measurement accuracy is higher with the temperature compensator

  • Suitable for indoor or outdoor use

  • Hermetically sealed case of stainless steel AISI 304

  • AISI 316 gas contact parts

  • Specified values and signal outputs regardless of instal altitude

  • Design of an electric contact switch to accurately and stably monitor gas density function SF6

  • Multiple options, such as a pressure alarm, a double alarm or a two-way locking, can be implemented by up to four pairs of points of contact.

  • The overlapping dial design eliminates the cable's gap and prevents the sunlight from entering the metre on the compensation element.


Technical Data of ZMJ100PF Series Density Monitors


Nominal Size:100mm
Scale range:-0.1 to 0.9MPa (customizable)
Accuracy:(related to the measuring span; SF6 in gas phase)
a)  20°C:Class 1.0 or 1.5
b)-40°C to 60°C:Class 2.5
Degree of protection:IP65
Ambient conditions:-40°C to 60°C,Relative humidity ≤ 95%RH
Leakage rate:≤ 1 × 10-9 Pa·m3/s (Helium mass spectrometer)
Pressure connection:M20 × 1.5, (customizable)
Location:Bottom or back
Electrical connection:Compact pluggable box with M20 ×1.5 cable gland
cable size 1.5mm2 recommended, 2.5mm2 maximum
Insulation properties:
Insulation resistance:>100 MW (500 V DC)
Withstand voltage:2kV, 50/60 Hz 1 min (to case)
Contact type:Pointer driven magnetic snap action signal contacts; 80%Ag、20% Ni, 10µm Au plated
Impact rating:50g (oil-filled), 30g (non-oil-filled)
Contact ratings:30W/50VA, 1A max.
220VDC/380V 50/60Hz max.
Window:Laminated safety glass
Weight:1kg
Pressure element:Bowden tube


Options of ZMJ100PF Series Density Monitors


  • Oil-filled

  • Full scale indication value 1.0 level

  • Power frequency withstand voltage 2.5kV, 50/60 Hz, 1min

  • Wide temperature range -60°C to +60°C
