YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

For Measuring Pressure in fluids that are highly viscous, crystalizing, solidifying or contains small grains, to prevent crystallization or clogging in the vent. Various Signals for Different Industrial Standards
YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

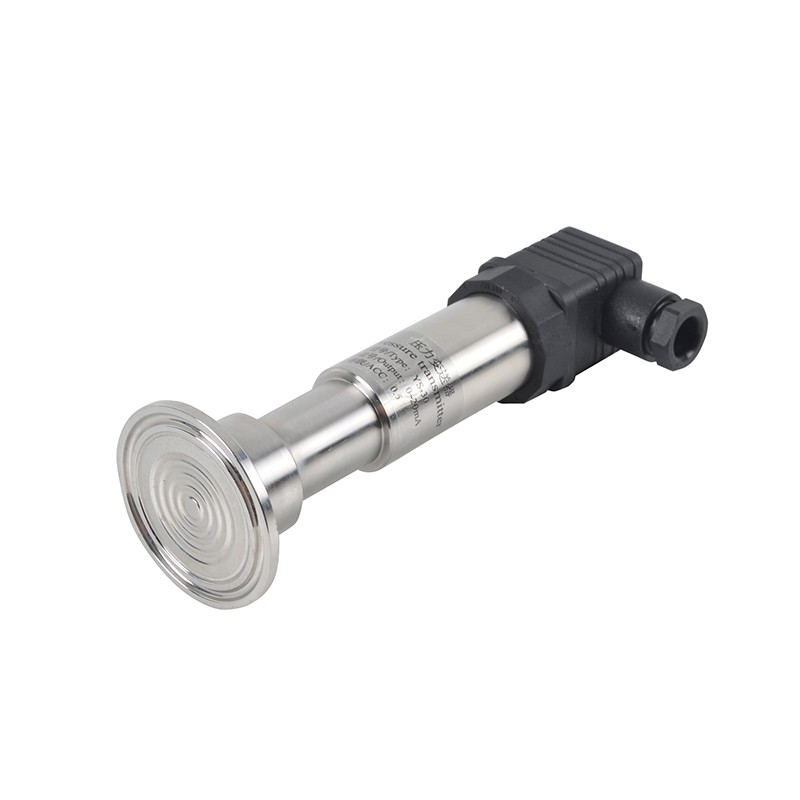

  • YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

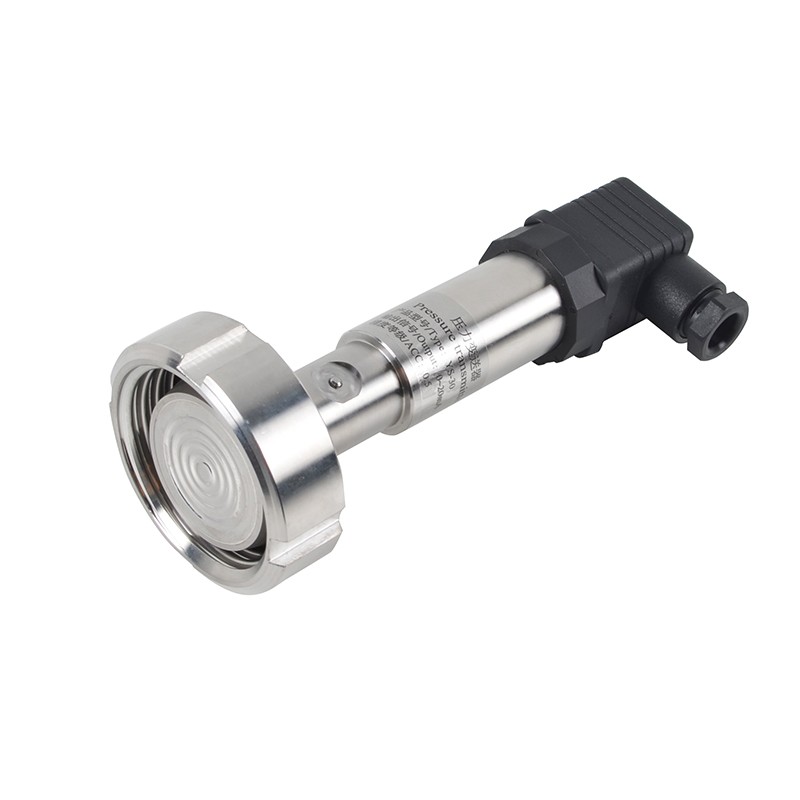

  • YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter 1
Share It :

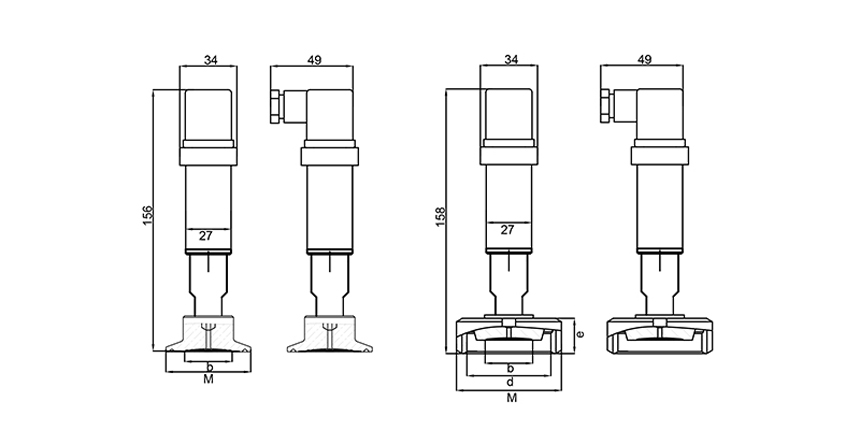

Drawing of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter


YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter

DN

M/mm

b/mm

1”

50.5

35

1.5”

50.5

35

2”

64

42

DN/mm

M/mm

d/mm

e/mm

b/mm

25

63

Rd52×1/6

21

35

32

70

Rd58×1/6

21

38

40

78

Rd65×1/6

21

42

50

92

Rd78×1/6

22

54


Application of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter


  • Oil and Gas

  • Petrochemical Industry

  • Electrical Equipment

  • Mechanical Processing

  • Food and Beverage

  • Biopharmaceutical Industry


Feature of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter


  • Small size

  • High accuracy

  • Standard signal output

  • IP65

  • DIN32676 or DIN11851 standard flange connection

  • Medical grade

  • 316L isolation diaphragm

  • No dead angle in the measuring cavity

  • Easy to clean


Technical Data of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter


Certification:CPA (China), CRN (Canada)
Accuracy:0.5%
Overpressure:150% x Full Scale Range
Wetted Material:316L Stainless Steel
Case Material:Stainless Steel
Power Source:11-30V
Signal Output:4-20mA
Power Load:≤600Ω
Response Time:<1ms
Process Connection:Flange in compliance with DIN 32676 or DIN 11851
Electrical Connection:Angular Connector Form A EN175301-803, PG9 or PG11
Diaphragm Filling:Silicone, NEOBEE-M20
Working Temperature:-20℃ to 60℃
NEOBEE-M20  -20℃ to +40℃


Standard Measuring Range


MPa

0~0.6

0~1

0~1.6

0~2.5

bar

0~6

0~10

0~16

0~25

psi

0~100

0~160

0~200

0~300

* Range could also be converted to units including millibar (mbar), kg/cm2 and kPa.


Options of YS-30+DS Silicon Piezoresistive Diaphragm Pressure Transmitter


  • Process Connection Dimensions Customizable
