YS-30 Silicon Piezoresistive Pressure Transmitter

Best for measuring pressure of corrosive fluids (liquids & gas) in industrial processes. Various Signals for Different Industrial Standards
YS-30 Silicon Piezoresistive Pressure Transmitter

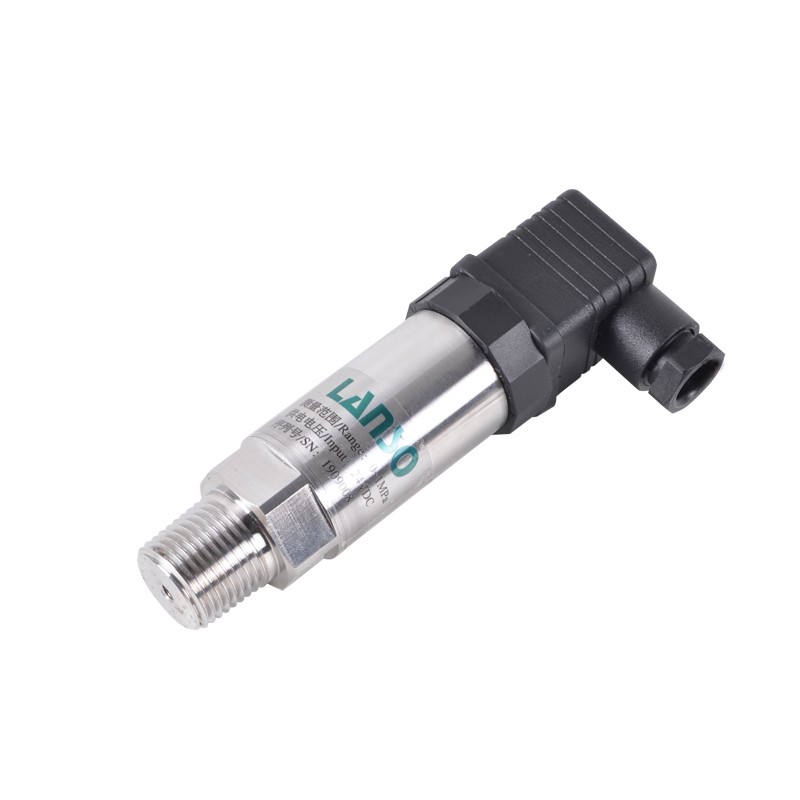

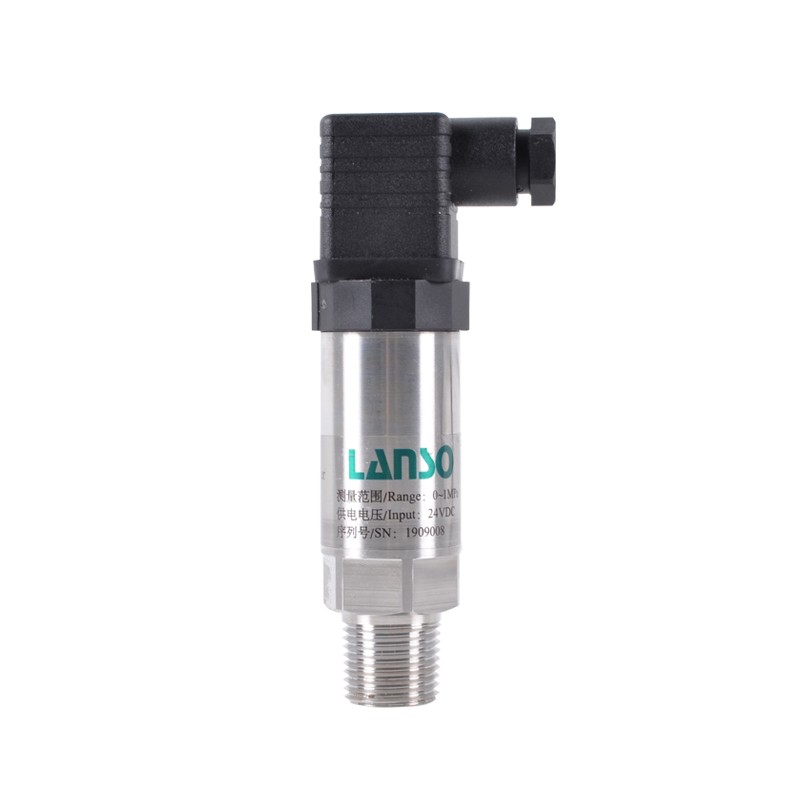

  • YS-30 Silicon Piezoresistive Pressure Transmitter

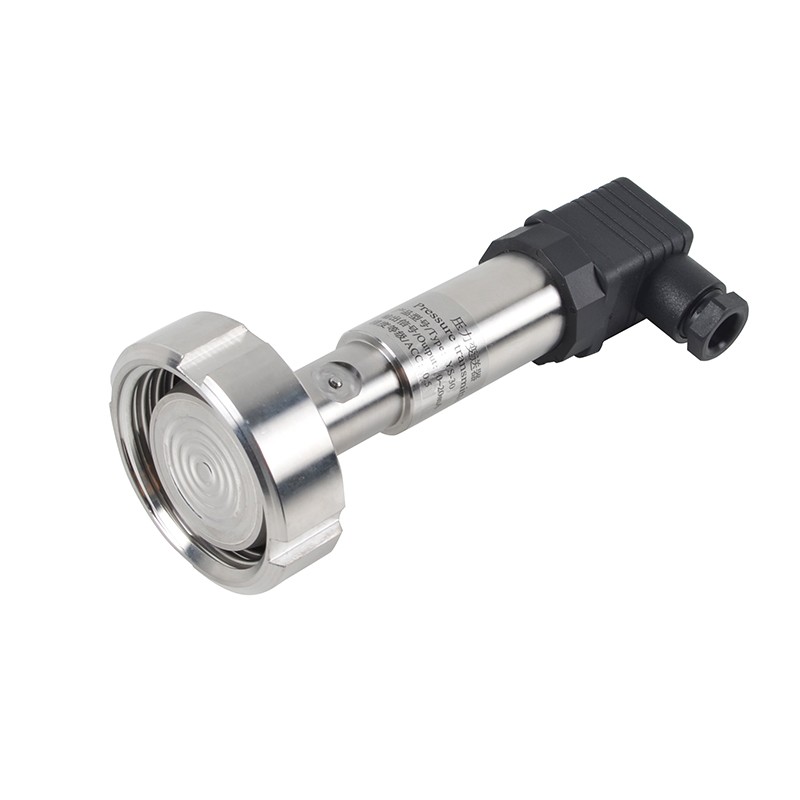

  • YS-30 Silicon Piezoresistive Pressure Transmitter 1
Share It :

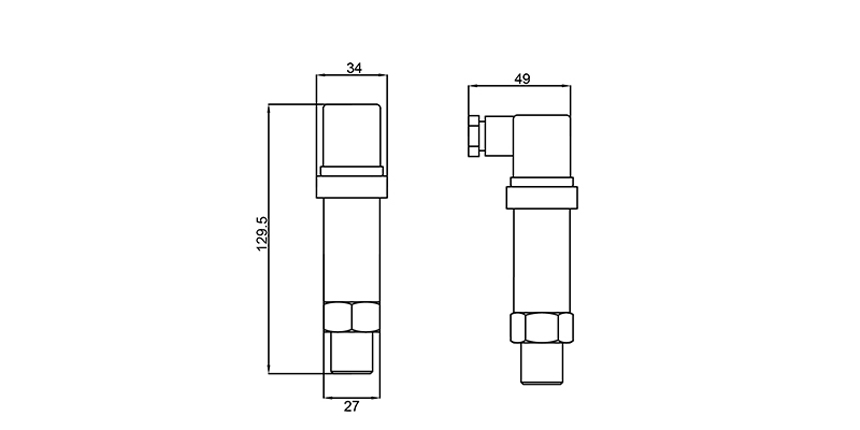

Drawing of YS-30 Silicon Piezoresistive Pressure Transmitter


YS-30 Silicon Piezoresistive Pressure Transmitter


Application of YS-30 Silicon Piezoresistive Pressure Transmitter


  • Oil and Gas

  • Petrochemical Industry

  • Electrical Equipment

  • Mechanical Processing

  • Food and Beverage

  • Biopharmaceutical Industry


Feature of YS-30 Silicon Piezoresistive Pressure Transmitter


  • Small scale

  • High precision

  • Standard  signal output

  • IP65

  • process connection can be customized


Technical Data of YS-30 Silicon Piezoresistive Pressure Transmitter


Certification:CPA (China), CRN (Canada)
Accuracy:0.25% & 0.5%
Overpressure:150% x Full Scale Range
Wetted Material:Stainless Steel
Case Material:Stainless Steel
Power Source:11-30V
Signal Output:4-20mA
Power Load:≤600Ω
Response Time:<1ms
Process Connection:M20 x 1.5, G½,  ½NPT and Others
Electrical Connection:Angular Connector Form A EN175301-803, PG9 or PG11
Working Temperature:-20℃ to 60℃


Standard Measuring Range


MPa

0~0.1

0~0.16

0~0.25

0~0.4

0~0.6

0~1

0~1.6

0~2.5

0~4

0~6

0~10

0~16

0~25






bar

0~1

0~1.6

0~2.5

0~4

0~6

0~10

0~16

0~25

0~40

0~60

0~100

0~160

0~250






psi

0~15

0~30

0~60

0~100

0~160

0~200

0~300

0~600

0~800

0~1000

0~1500

0~2000

0~3000

0~4000

0~5000




* Range could also be converted to units including millibar (mbar), kg/cm2 and kPa.


Options of YS-30 Silicon Piezoresistive Pressure Transmitter


  • Process Connection Dimensions Customizable
