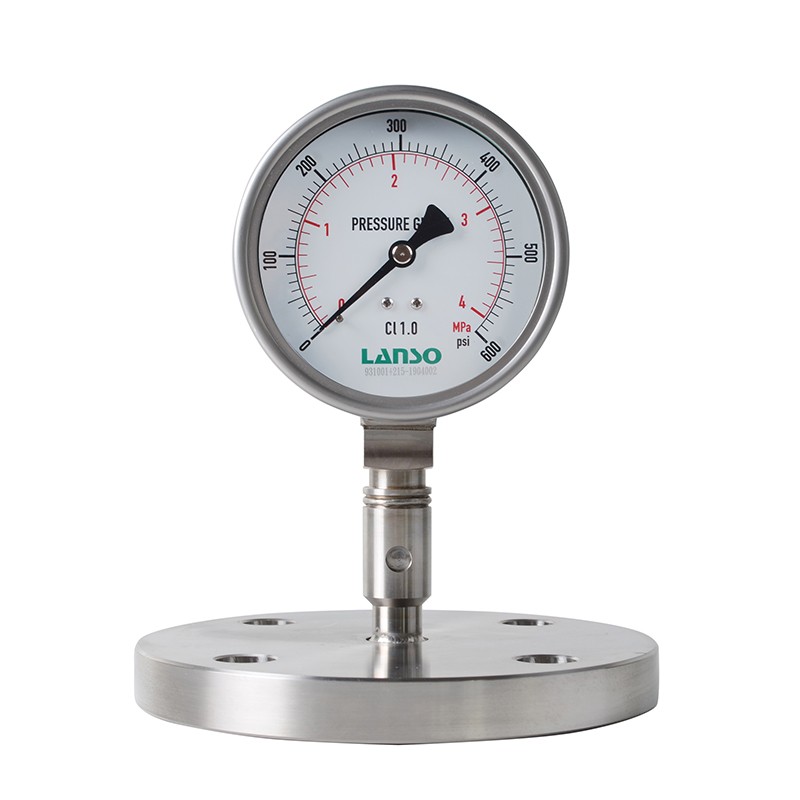

Flange connection in compliance with ASME standard
Optional isolation diaphragms of different materials
Easy to clean
Bolt joint
| Standards: | JBT 8624-1997 |
| Pressure Gauge Complies with EN837-1, GB/T 1226 | |
| Certificate: | CPA (China) |
| Nominal Size (mm): | 100 |
| Accuracy: | 1.0% & 1.6% |
| Pressure Limits: | |
| Steady State: | 3/4 x Full Scale Range |
| Fluctuating: | 2/3 x Full Scale Range |
| Short Time: | Full Scale Range |
| Overpressure: | |
| ≤10MPa: | 125% x Full Scale Range |
| ＞10MPa，≤60MPa: | 115% x Full Scale Range |
Temperature Effect:
When the ambient temperature deviates from 20℃, the reading can deviated to a maximum of ±0.1% / 10K (degrees in Celsius/Kelvin).
| Flange Standard: | HG20592、HG20615、ASME B16.5、EN1092-1 |
| Wetted Material: | Stainless Steel 316L, HC276, Monel, Tan |
| Pressure Element: | Stainless Steel 316L, C-Type or Helical-Type |
| Case Material: | Stainless Steel |
| Movement: | Stainless Steel |
| Dial: | Aluminum |
| Black Text on White Background. | |
| Pointer: | Aluminum. Black |
| Window: | Glass, Safety Glass, Organic Glass |
| Process Connection: | Back-Mounted, Bottom-Mounted |
| Diaphragm Filling: | Silicone, Neobee M-20 (Edible Oil), Others |
| Case Filling: | No Fill, Glycerin, Silicone, Others |
| Working Temperature: | Silicone -20℃ to +60℃ |
| Neobee M-20 -20℃ to +40℃ | |
MPa | -0.1~0 | -0.1~0.06 | -0.1~0.15 | -0.1~0.3 | -0.1~0.5 | -0.1~0.9 |
-0.1~1.5 | -0.1~2.4 | 0~0.1 | 0~0.16 | 0~0.25 | 0~0.4 | |
0~0.6 | 0~1 | 0~1.6 | 0~2.5 | 0~4 | 0~6 | |
0~10 | 0~16 | 0~25 | 0~40 | 0~60 | ||
bar | -1~0 | -1~0.6 | -1~1.5 | -1~3 | -1~5 | -1~9 |
-1~15 | -1~24 | 0~1 | 0~1.6 | 0~2.5 | 0~4 | |
0~6 | 0~10 | 0~16 | 0~25 | 0~40 | 0~60 | |
0~100 | 0~160 | 0~250 | 0~400 | 0~600 | ||
psi | -30inHg~0 | -30inHg~15psi | -30inHg~30psi | -30inHg~60psi | -30inHg~100psi | -30inHg~150psi |
-30inHg~300psi | 0~15 | 0~30 | 0~60 | 0~100 | 0~160 | |
0~200 | 0~300 | 0~600 | 0~800 | 0~1000 | 0~1500 | |
0~2000 | 0~3000 | 0~4000 | 0~5000 | 0~6000 |
* Range could also be converted to units including millibar (mbar), kg/cm2 and kPa.

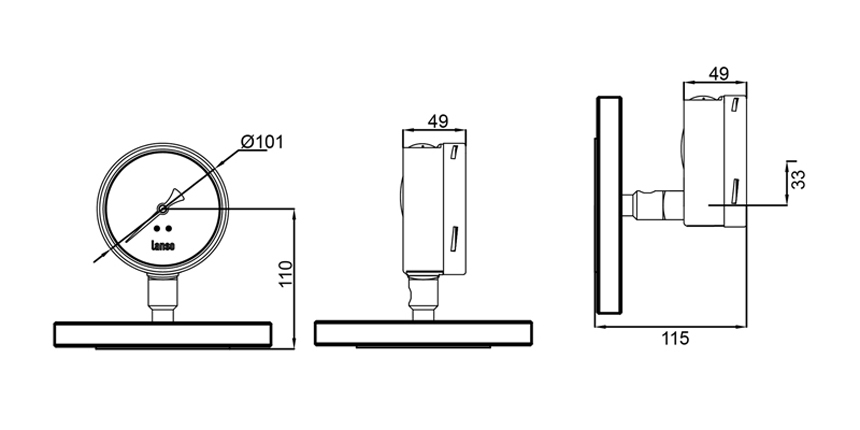

Process Connection Dimensions Customizable
Dial Customizable
