ZMJ60R Remote-Transmission Density Monitor

These instruments are used to monitor the density of SF6 gas in sealed tanks and can be widely used in medium voltage switchgear and RMU. They are applied to indicate the gas density and reliably output SF6 gas density signal for remote monitoring. They can provide multiple solutions to support new substations and the intelligent transformation of existing substations.
ZMJ60R Remote-Transmission Density Monitor

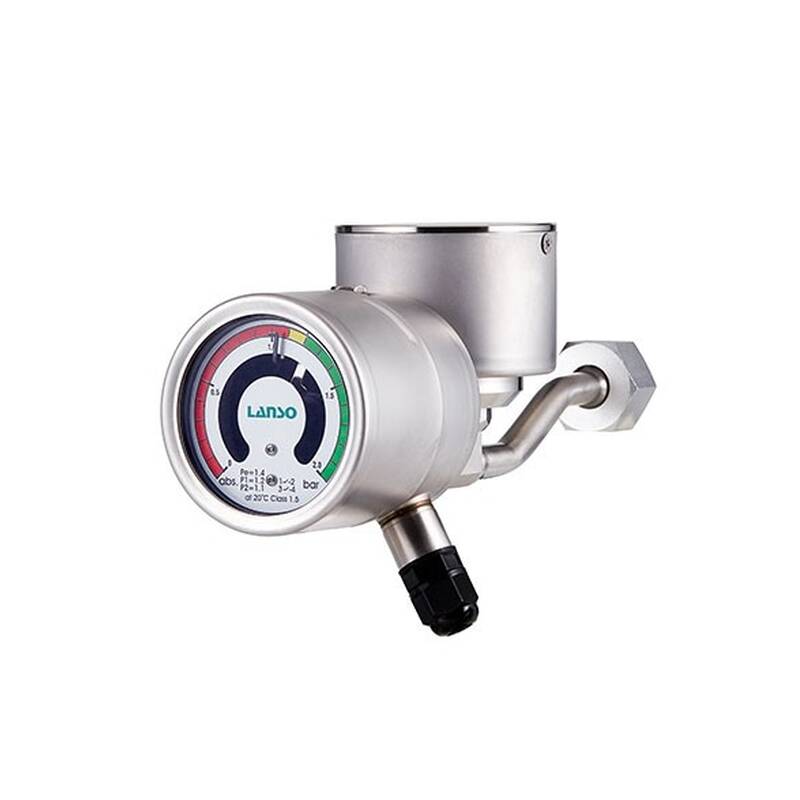

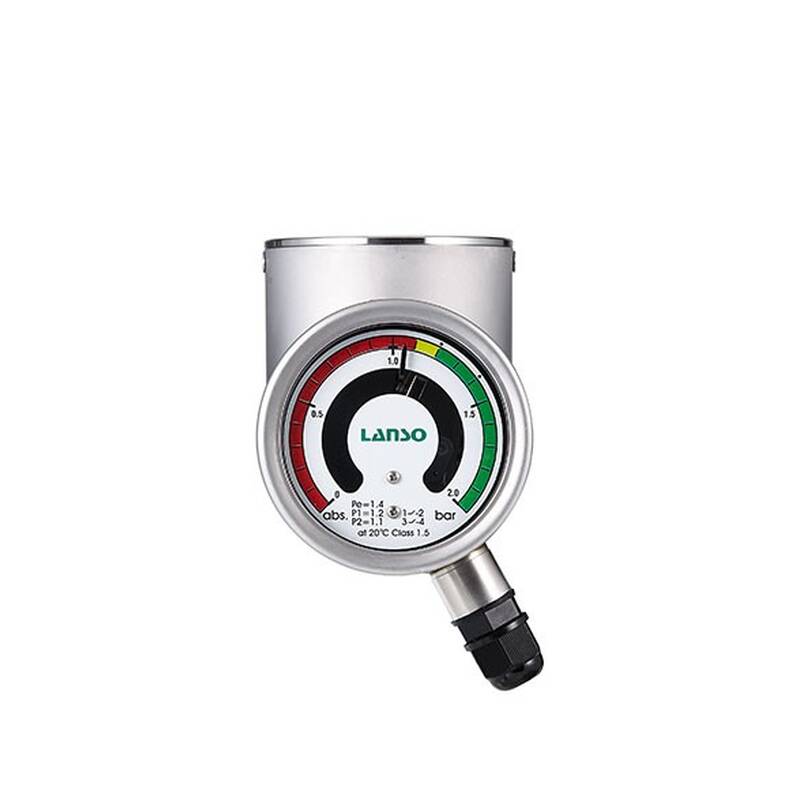

  • ZMJ60R Remote-Transmission Density Monitor
  • ZMJ60R Remote-Transmission Density Monitor 1
Share It :

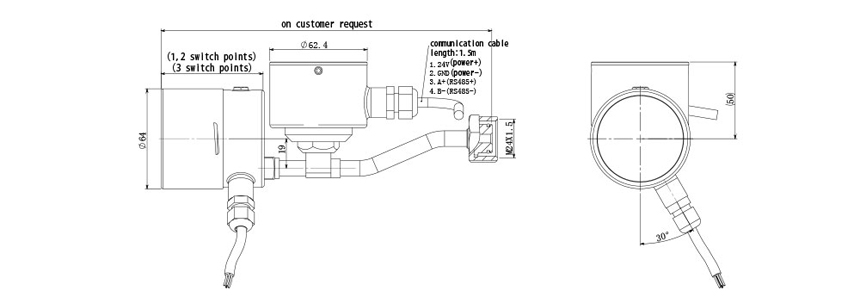

Drawing of ZMJ60R Remote-Transmission Density Monitor


ZMJ60R Remote Transmission Density Monitor


Application of ZMJ60R Remote-Transmission Density Monitor


  • SF6 gas Insulated RMU

  • SF6 gas Insulated Switchgear


Features of ZMJ60R Remote-Transmission Density Monitor



  • Minimisation of volume, custom interface, convenient and reliable installation.

  • Pressure interface customised to customer requirements.

  • Utmost three pairs of contact switching can be provided according to user needs.

  • The RS485 remote function ensures remote monitoring


Technical Data of ZMJ60R Remote-Transmission Density Monitor


Case diameter:Φ64mm
Case material:Stainless steel
Scale range:0 to 2bar (abs.) or -1 to 6bar
Accuracy:Class 1.5 at20°C; class 2.5 at-40°C to+ 60°C
Ambient conditions:-40°C to +60°C, relative humidity ≤ 95%RH
Degree of protection:IP65
Leakage rate:≤1 × 10-9 Pa·m3/s (Helium leakage inspection)
Contact type:Magnetic snap-action switch (Maximum two groups, normally open or normally closed, customized by 3 groups according to users' needs)
Pressure connection:M20×1.5 (customizable)
Installation method:radial or axial
Insulation properties:
Insulation resistance:>100 MW (500 V DC)
Withstand voltage:2kV, 50/60 Hz 1 min
Contact electrical parameters:Power: 30VA
Maximum operating voltage:380V
Maximum current:1A
Weight:0.3kg
Pressure element:European bourdon tubes


Main electrical performance indicators and specifications of the remote transmission part


Power supply:DC  24V
Power consumption:< 2W
Communication mode:RS485
Protocol:ModBus RTU
Baud rate:9600bps


Anti-electromagnetic interference


IEC61000-4-2:level 4 (15kV)
IEC61000-4-3:level 3 (10V / m)
IEC61000-4-4:level 4 (4kV)
IEC61000-4-5:level 3 (+/- 2kV)
IEC61000-4-6:level 3 (10V)
IEC61000-4-8:level 5 (100A / m)


Options of ZMJ60R Remote-Transmission Density Monitor


  • Measuring range

  • Ambient condition

  • Outlet Direction and cable length

  • Installation method

  • Suitable for High-altitude environment

  • Can detect SF6, Air, N2, SF6 + N2 and other gases
