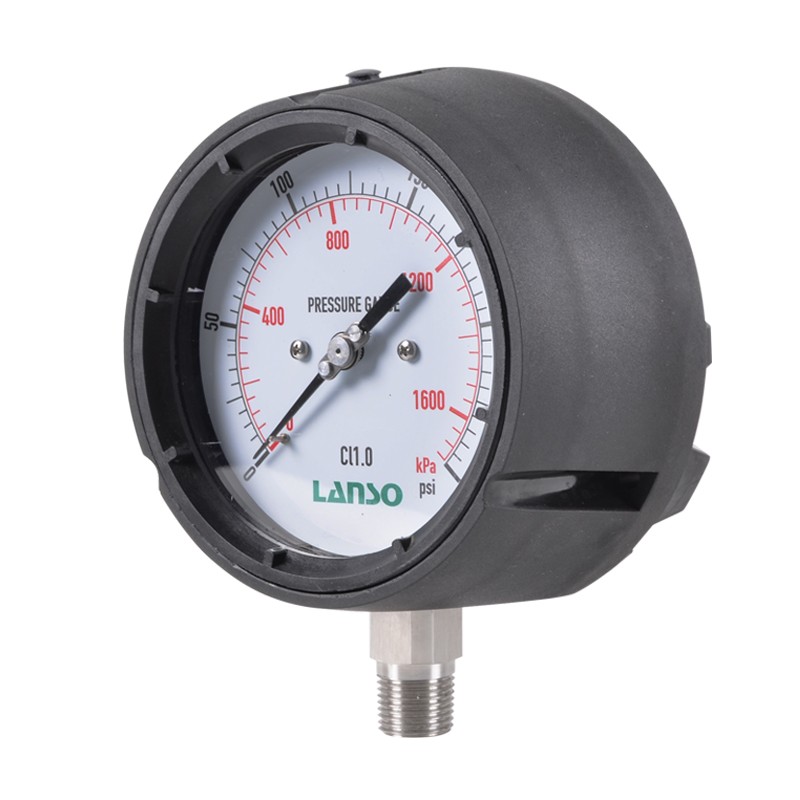

B36.SA Phenol Casing Pressure Gauge

For measuring pressure of fluids (liquids & gas) in industrial processes with complex and hazardous environments. With safety partition plate built into the pressure-releasing enclosure back, the internal stress from overloading pressure elements are released, enhancing operation safety to users and equipment.
B36.SA Phenol Casing Pressure Gauge
  • B36.SA Phenol Casing Pressure Gauge
Share It :

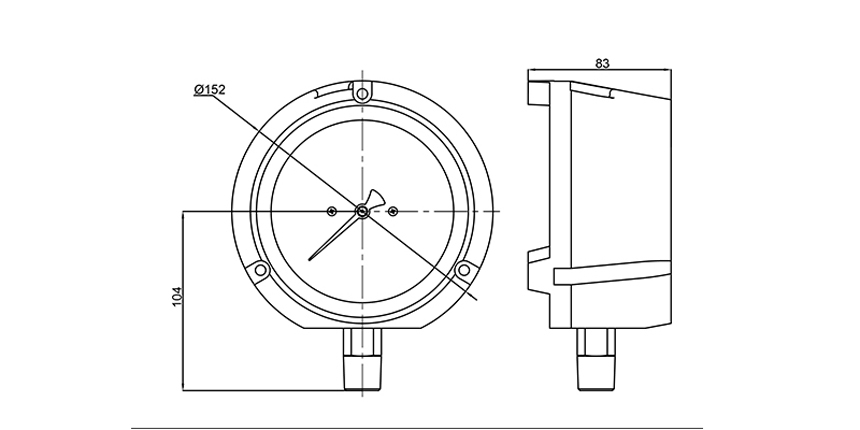

Drawing of Phenol Casing Pressure Gauge


B36.SA Phenol Casing Pressure Gauge



Application of Phenol Casing Pressure Gauge


  • Oil and Gas

  • Petrochemical Industry

  • Electrical Equipment

  • Mechanical Processing

  • Food and Beverage

  • Biopharmaceutical Industry


Feature of Phenol Casing Pressure Gauge


  • Safety design, pressure-release back-plate enclosure with safety partition plate

  • Intuitive display

  • Suitable for use in complex environments

  • Wetted material: stainless steel

  • Case material: phenolic

  • Process connection can be customized

  • Customization of dials


Technical Data of Phenol Casing Pressure Gauge


Standards:ASME B40.100
Certification:CPA (China), CRN (Canada)
Nominal Size (mm):4.5’’
Accuracy:ASME B40.100 Grade 1A
Pressure Limits:
Steady State:3/4 x Full Scale Range
Fluctuating:2/3 x Full Scale Range
Short Time:Full Scale Range
Overpressure:
≤10MPa:125% x Full Scale Range
>10MPa,≤60MPa:115% x Full Scale Range



Temperature Effect:


When the ambient temperature deviates from 20℃, the reading can deviated to a maximum of ±0.04% / 10K (degrees in Celsius/Kelvin).


Wetted Material:304 / 316L Stainless Steel
Pressure Element:316L Stainless Steel, C-type or Helical-type.
Case Material:Phenolic Plastic
Movement:Stainless Steel
Dial:Aluminum.
Black Text on White Background.
Dual Scale Option.
Pointer:Aluminum. Black
Window:Organic Glass
Process Connection:Bottom
Filling Liquids:No Fill, Glycerin, Silicone, Others
Working Temperature:-40℃ to 70℃ (for No-Fill or Silicone)
-20℃ to 60℃ (for Glycerin)


Standard Measuring Range


MPa

0~0.1

0~0.16

0~0.25

0~0.4

0~0.6

0~1

0~1.6

0~2.5

0~4

0~6

0~10

0~16

0~25

0~40

0~60




bar

0~1

0~1.6

0~2.5

0~4

0~6

0~10

0~16

0~25

0~40

0~60

0~100

0~160

0~250

0~400

0~600




psi

0~15

0~30

0~60

0~100

0~160

0~200

0~300

0~600

0~800

0~1000

0~1500

0~2000

0~3000

0~4000

0~6000




* Range could also be converted to units including millibar (mbar), kg/cm2 and kPa.


Options Of Phenol Casing Pressure Gauge


  • Process Connection Dimensions Customizable

  • Dial Customizable
