B32.SA Stainless Steel Pressure Gauge – Safety Design

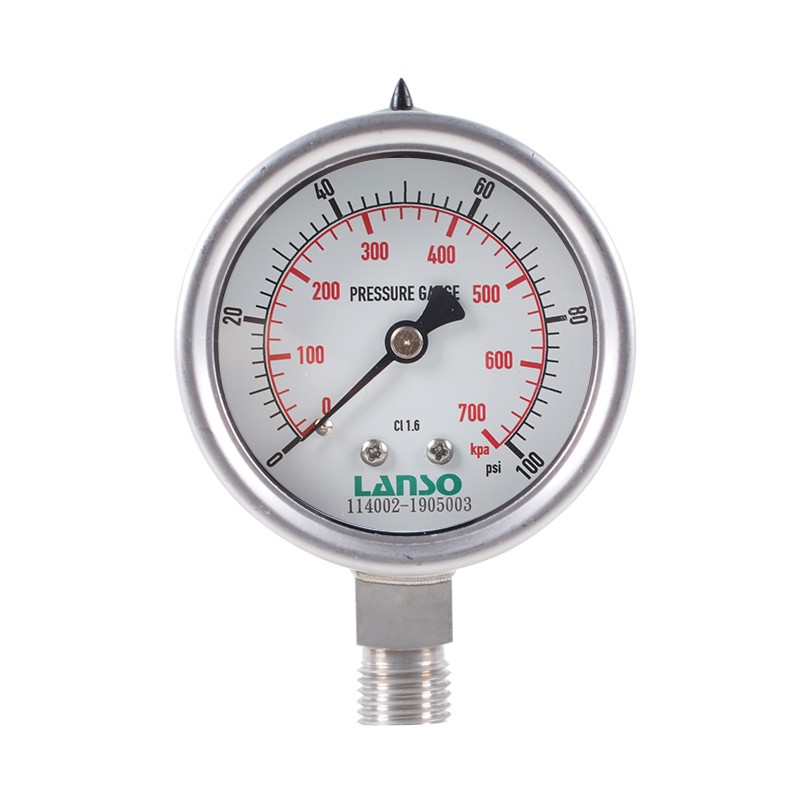

For measuring pressure of fluids (liquids & gas) in industrial processes with complex and hazardous environments. With safety partition plate built into the pressure-releasing enclosure back, the internal stress from overloading pressure elements are released, enhancing operation safety to users and equipment.
B32.SA Stainless Steel Pressure Gauge – Safety Design
  • B32.SA Stainless Steel Pressure Gauge – Safety Design
  • B32.SA Stainless Steel Pressure Gauge – Safety Design 1
Share It :

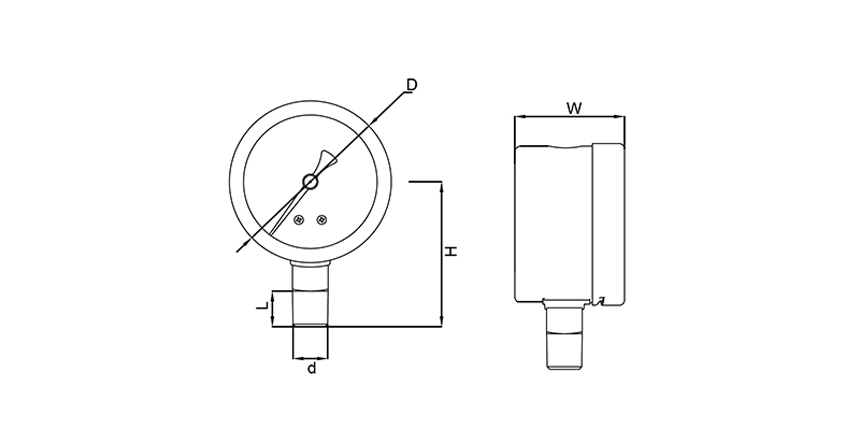

Drawing of B32.SA Stainless Steel Pressure Gauge – Safety Design


B12.SA Stainless Steel Pressure Gauge – Safety Design


Connection Dimensions of B32.SA Stainless Steel Pressure Gauge – Safety Design


D/mm

63

100

H/mm

60±2

90±2

W/mm

33

49

d/mm

M14x1.5, G1/4, NPT1/4

M20x1.5, G1/2, NPT1/2, Others

L/mm

14

20


Application of B32.SA Stainless Steel Pressure Gauge – Safety Design


Oil and Gas

Petrochemical Industry

Electrical Equipment

Mechanical Processing

Food and Beverage

Biopharmaceutical Industry


Features of B32.SA Stainless Steel Pressure Gauge – Safety Design


  • Safety Design

  • Direct and Easy-to-Read

  • Corrosion-Resistant

  • Suitable for installation in complex environments

  • Case material: stainless steel

  • Wetted parts: stainless steel

  • Pressure-release back-plate enclosure with safety partition plate


Technical Data of B32.SA Stainless Steel Pressure Gauge – Safety Design


Standards:EN837-1, GB/T1226
Certification:CPA (China), CRN (Canada)
Nominal Size (mm):63, 100
Accuracy:63mm: 1.6% & 2.5%
100mm:1.0% & 1.6%
Pressure Limits:
Steady State:3/4 x Full Scale Range
Fluctuating:2/3 x Full Scale Range
Short Time:Full Scale Range
Overpressure:
≤10MPa:125% x Full Scale Range
>10MPa,≤60MPa:115% x Full Scale Range


Temperature Effect:


When the ambient temperature deviates from 20℃, the reading can deviated to a maximum of ±0.04% / 10K (degrees in Celsius/Kelvin).


Wetted Material:304 / 316L Stainless Steel
Pressure Element:316L Stainless Steel, C-type or Helical-type.
Case Material:Stainless Steel
Movement:Stainless Steel
Dial:Aluminum.
Black Text on White Background.
Dual Scale Option.
Pointer:Aluminum. Black
Window:Glass, Safety Glass, Organic Glass
Process Connection:Bottom-Mounted
Filling Liquids:No Fill, Glycerin, Silicone, Others
Working Temperature:-40℃ to 70℃ (for No-Fill or Silicone)
-20℃ to 60℃ (for Glycerin)


Standard Measuring Range


MPa

-0.1~0

-0.1~0.06

-0.1~0.15

-0.1~0.3

-0.1~0.5

-0.1~0.9

-0.1~1.5

-0.1~2.4

0~0.1

0~0.16

0~0.25

0~0.4

0~0.6

0~1

0~1.6

0~2.5

0~4

0~6

0~10

0~16

0~25

0~40

0~60


bar

-1~0

-1~0.6

-1~1.5

-1~3

-1~5

-1~9

-1~15

-1~24

0~1

0~1.6

0~2.5

0~4

0~6

0~10

0~16

0~25

0~40

0~60

0~100

0~160

0~250

0~400

0~600


psi

-30inHg~0

-30inHg~15psi

-30inHg~30psi

-30inHg~60psi

-30inHg~100psi

-30inHg~150psi

-30inHg~300psi

0~15

0~30

0~60

0~100

0~160

0~200

0~300

0~600

0~800

0~1000

0~1500

0~2000

0~3000

0~4000

0~5000

0~6000


* Range could also be converted to units including millibar (mbar), kg/cm2 and kPa.


Options of B32.SA Stainless Steel Pressure Gauge – Safety Design


  • Process Connection Dimensions Customizable

  • Dial Customizable
